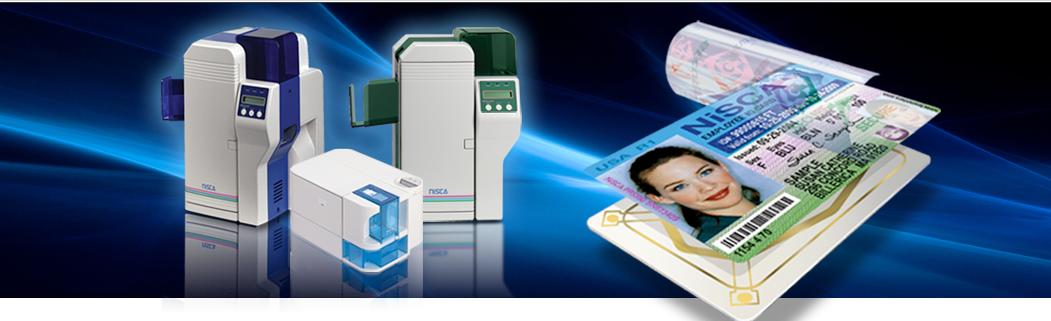

Nisca PR-C151 High Speed, Mid Level, Dual-Sided ID Card PrinterNisca

Nisca PR-C151 Printer

The industrial card printer for high-volume card personalization.

[replaced old module card printerss PR5350, PR5360LE]

The PRC-151 offers a small foot-print, 24-bit color, 256-Grayscale, security lamination, encoding options and prints at the astounding speed of over 144* cards/hour! The PR-C151 has the same NiSCA quality, manufactured in their ISO certified production facility. The printer offers brilliant 24-bit images printed on CR80 cards with thicknesses ranging from 20 mil – 50 mil (.25mm-1.27mm) (10 mil Special Order). The PR-C151 is available with options for MagStripe encoding and security lamination with the addition of the PR-L151 laminator.

  • Mid Level Printer
  • Dual Sided Printing
  • 24-bit color
  • Supports XP, Vista, Win 8 (32/64 bits), Win 8.1, Win 10
  • Optional lamination with the PR-L151 laminator.
Note: *speed in YMCKO color printing



Product Highlights and Features

Print Print Method Dye Sublimation Direct Print
Resolution 300 dpi
Input RGB 256 level
Output CMY 256 level
Printing Area Edge-to-Edge
Speed Single Side YMCKO 128 cards/hr
Double-Sided YMCKO 66 cards/hr
Capacity Feeder Capacity 100 cards (if card thickness is 0.76mm)
Card Exit Capacity 100 cards (if card thickness is 0.76mm)
Card Card thickness 20 mil – 50 mil (.25mm-1.27mm) 10 mil Special Order
Card Size CR80 (85.6cm x 54cm)
Card material PVC, PVC Composite
Display Display LCD Display Panel (with Backlight), LED, Operation Button
Size Dimensions 16.57(H) x 10.66(W) x 13.03(D) inches (421(H) x 271(W) x 331(D) mm)
Weight Less than 26.61 lbs. (13kg)
Power Power Source 90-125VAC 220-240VAC 50/60Hz
Power Consumption Less than 120 W
Temperature Operating Temperature 15 to 35°C - 20 to 80% humidity
Drivers I/F USB, Ethernet
Drivers XP, Vista, Win 8 (32/64 bits), Win8., Win 10
Ribbon Ribbon Capacity 250 images / roll (YMCKO ribbon)
Ink Ribbon YMCKO, K
Agency Listing Agency Listing UL/CSA/CE/FCC
Life MTBF 100,000 prints
Warranty 1 year
Other Memory Size 32MB
Options Encoder Mag Encoder
Contactless Encoder (Mifare, Legic, HD Prox, iCLASS)
Laminator NiSCA Dedicated Laminator



Optional laminator

  • laminator (PR-L151) is available for laminating printed cards with thicker film or hologram patch

PRL151 Heat Roller

Supplies and consumables

The following supplies/consumables are available:

  • YMCKO, YMCKO/K
  • Security Overlamination with Hardcoat (patch style) or Thinfilm (Softcoat)
  • Cleaning kits
